Portable
At under 60 lbs, this suitcase-style footprint makes it the most portable drawn arc stud welder in its energy class
Powerful
Weld up to 5/8″ studs
Versatile
Accepts a wide range of single phase input power
Specifications
The Agile Stud Welder by Autab brings advanced drawn-arc welding capability directly to your job site. Engineered for robust performance, the Agile combines portability and precision, perfect for industrial, automotive, and construction applications.

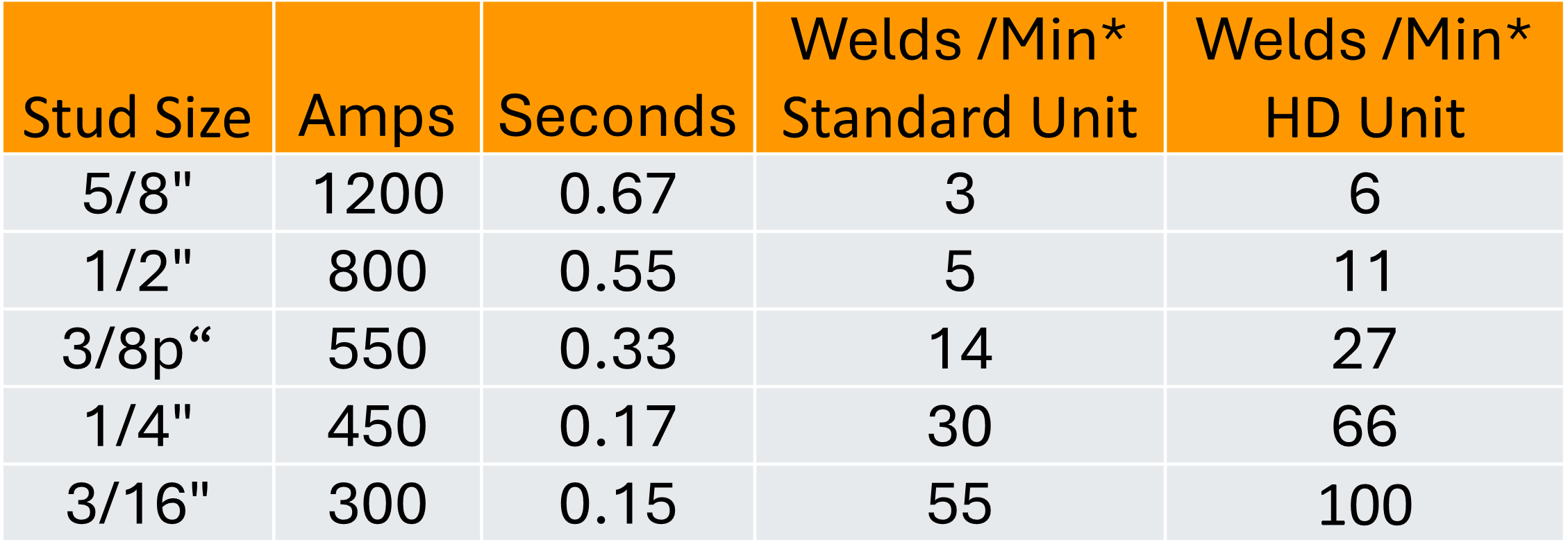

Weld Rate
Input Power
Input Power:
90 ~ 264VAC Single Phase
Standard Unit:
15A @ 115VAC
9A @ 230VAC
HD Unit:
16A @ 230VAC
Need 3-phase? Ask for availability
Mechanical
Dimensions: 14″ H x 10″W x 20″D
Weight: 55lbs
Compatibility
Comes standard with 4-wire weld tool interface
2-wire weld tool capable. Ask for details
Optional automated interface
Why Choose Agile?
Ease of Mobility: Compact and lightweight for easy transport between work sites. At least 30% lighter than other stud welders, while offering more capability.
Reliable: Consistent performance with single-phase input, adaptable to a wide range of environments.
Precision Welding: Deliver accurate, high-quality welds consistently, every time.
Contact us for pricingPatent No. 12,260,990
